Volumetric or Weighing Dosing Systems

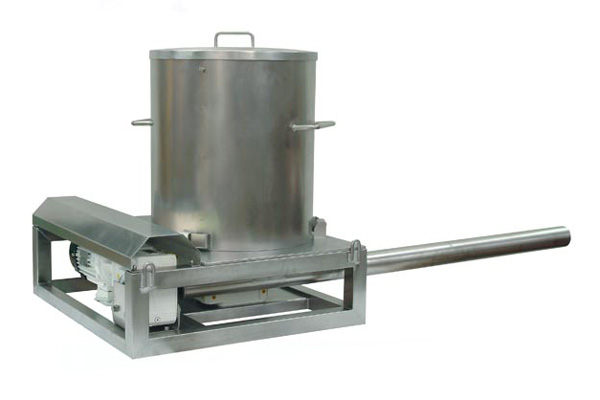

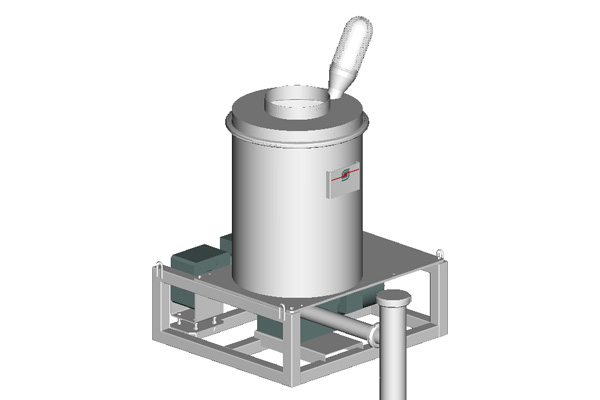

The DV Dosing units enable high accuracy dosing of powder or dry inclusions with either volumetric or gravimetric depositors. These units are equipped with anit bridging feature and are usually installed on a pre-blending station frame closed to the blending units.

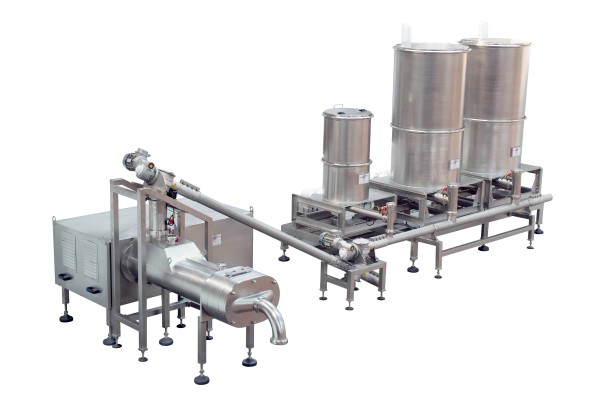

The dosing SKID enable grouping of weight and volumetric dosing units in small spaces (ATEX) for the preparation of PREMIX which is pre-blended prior to transport.
Transfer and dosing of premix are done by transport auger.
Transfer of powders can be done by pneumatic transport, (low pressure system).



Main advantages:

• 2 models with circular hopper in stainless steel 304 L - DV 500/800 type,
• Wide range of output,
• Dosing accuracy from 0,25 % by weight loss to 1 % in volumetric,
• Continuous running
• Control of production parameters: output, hopper auger speed, low / high level,
• Manual / automatic feeding of dry products: powders, dry inclusions,
• Sanitary design for easy dismantling and cleaning,
• Strong construction with a very easy and economical maintenance,
• Options: possibility of gravimetric dosing by weight loss, stainless steel hopper extension, lid with handle, safety grid and platform for unloading bags.
